A335 Seamless Steel Pipe

ASTM A335 steel pipe may be hot finished or cold drawn and subjected to the following finishing heat treatment. The specification covers "chrome-molybdenum" seamless pipes with excellent corrosion resistance and high temperature tensile strength.

+8613361469999

Contact Us

Product Parameters

Carbon Steel: Properties, Production, Examples and Applications

Carbon steel is an iron-carbon alloy, which contains up to 2.1 wt.% carbon. For carbon steels, there is no minimum specified content of other alloying elements, however, they often contain manganese. The maximum manganese, silicon and copper content should be less than 1.65 wt.%, 0.6 wt.% and 0.6 wt.%, respectively.

Types of carbon steel and their properties

Carbon steel can be classified into three categories according to its carbon content: low-carbon steel (or mild-carbon steel), medium-carbon steel and high-carbon steel . Their carbon content, microstructure and properties compare as follows:

Carbon content (wt.%)	Microstructure	Properties	Examples
Low-carbon steel	< 0.25	Ferrite, pearlite	Low hardness and cost. High ductility, toughness, machinability and weldability
Medium-carbon steel	0.25 – 0.60	Martensite	Low hardenability, medium strength, ductility and toughness
High-carbon steel	0.60 – 1.25	Pearlite	High hardness, strength, low ductility

Carbon Steel Description

Grade:

1)GB: Q195, Q215, Q235A, Q235B, Q235C, Q235D, Q255A, 255B, Q275, Q295A, Q295B, Q345B, Q345C, Q345D, Q345E, Q390A, Q390B, Q390C,Q390D, Q390E, Q420, Q420B, Q420C, Q420D, Q420E, Q460D, Q460E, Q500D, Q500E, Q550D, Q550E, Q620D, Q620E, Q690D, Q690E

2)EN: S185,S235JR, S275JR, S355JR, S420NL, S460NL S500Q, S550Q, S620Q, S690Q

3)ASTM: Grade B, Grade C, Grade D, A36, Grade 36, Grade 40, Grade42, Grade 50, Grade 55, Grade 60, Grade 65, Grade 80

4)JIS: SS330, SPHC, SS400, SPFC, SPHD, SPHE

PRODUCT DETAILS

A335 Seamless Steel Pipe Description

ASTM A335 Pipe is a seamless ferritic alloy-steel Pipe for high temperature service. Pipe of this specification are suitable for bending, flanging, and similar forming operations, and for fusion welding. Generally, ASTM A335 P11, P22, and P91 pipelines are used for power generation and downstream oil and gas, and P5 and P9 grades are used for refinery applications. A335 steel pipe not only has high oxidation resistance and high temperature steam corrosion resistance,but also has good impact toughness,stable durable plasticity and thermal strength. A335 steel pipes are commonly used to transport high-temperature and high-pressure oil, natural gas and other media.

Product Parameters
Product Name	A335 Seamless Steel Pipe
Standard	EN/DIN/JIS/ASTM/BS/ASME/AISI etc.
Outer Diameter	Seamless: 1/4"-36"	Welding: 21.3mm-3620mm
	Round Tube: 1/2"-10"	Square Tube/Rectangular Tube: 15x15mm-400x600mm
Wall Thickness	Seamless: 1.25mm-50mm	Welding: 1.65mm-65mm
Length	3-12 meters, Support customization
Surface Process	Bright, Polished, Black
Other Services	Machining(cnc), Centerless Grinding(cg), Heat Treatment, Annealing, Pickling, Polishing, Rolling, Forging, Cutting, Bending, Small Machining, etc.

Chemical Composition
A335	UNS	C≤	Mn	P≤	S≤	Si≤	Cr	Mo
P1	K11522	0.10~0.20	0.30~0.80	0.025	0.025	0.10~0.50	-	0.44~0.65
P2	K11547	0.10~0.20	0.30~0.61	0.025	0.025	0.10~0.30	0.50~0.81	0.44~0.65
P5	K41545	0.15	0.30~0.60	0.025	0.025	0.5	4.00~6.00	0.44~0.65
P5b	K51545	0.15	0.30~0.60	0.025	0.025	1.00~2.00	4.00~6.00	0.44~0.65
P5c	K41245	0.12	0.30~0.60	0.025	0.025	0.5	4.00~6.00	0.44~0.65
P9	S50400	0.15	0.30~0.60	0.025	0.025	0.50~1.00	8.00~10.00	0.44~0.65
P11	K11597	0.05~0.15	0.30~0.61	0.025	0.025	0.50~1.00	1.00~1.50	0.44~0.65
P12	K11562	0.05~0.15	0.30~0.60	0.025	0.025	0.5	0.80~1.25	0.44~0.65
P15	K11578	0.05~0.15	0.30~0.60	0.025	0.025	1.15~1.65	-	0.44~0.65
P21	K31545	0.05~0.15	0.30~0.60	0.025	0.025	0.5	2.65~3.35	0.80~1.60
P22	K21590	0.05~0.15	0.30~0.60	0.025	0.025	0.5	1.90~2.60	0.87~1.13
P91	K91560	0.08~0.12	0.30~0.60	0.02	0.01	0.20~0.50	8.00~9.50	0.85~1.05
P92	K92460	0.07~0.13	0.30~0.60	0.02	0.01	0.5	8.50~9.50	0.30~0.60

Tensile Strength Ksi	Elongation %
55	30
55	30
70	30
60	30
60	20
60	30
60	30
85	20

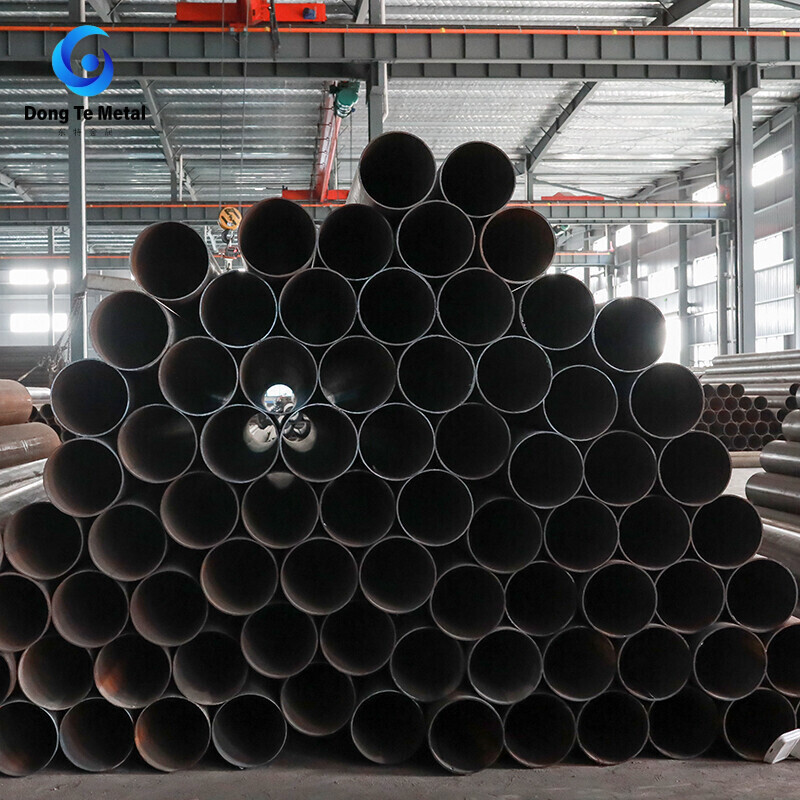

Product Display

Product Application

Product Packaging

Factory Display

FAQ

Are you a trading company or a manufacturer ?

We are manufacturer. Every month, we do a procurement for a massive number of steel material from Chinese state owned mill. The total value of steel processing equipment is more than 30 million dollars. Our major products cover all category of steel industry, and it is totally compatible to all kind of world steel standard.

Do you have large amount of steel products in stock ?

Yes, we do. In large-scale indoor warehouses, the total stock value is over 150 millions dollar.

Do you provide the samples ? Free or Extra ?

It is free, depend on the value of the sample. The cost of the freight would be charge.

How long is the delivery time ?

Officially, it is within 7 days. Actually, we can deliver within 3 days. Customized products or non-standard size products would be taken 10-30 days to deliver, depend on the production cycle. Generally, most of the products finished and delivered within 20 days.

Do you accept the third party inspection ?

Absolutely yes!

How could you guarantee your products ?

Each batch of products must have its own factory inspection report. If the third-party inspection report of the product you purchased does not match our factory inspection report, we will resend the goods, and we will carry all the costs by ourselves.

How can I get your quotation as soon as possible ?

You may have many methods to contact us. Email and fax will be checked within 12 hours, and Skype, WeChat and WhatsApp will be online in 24/7. Please send us your requirement, attaching specification (Steel grade, dimension, quantity, destination port) or any you are concerned, you will obtain a competitive price and supply solution soon.
